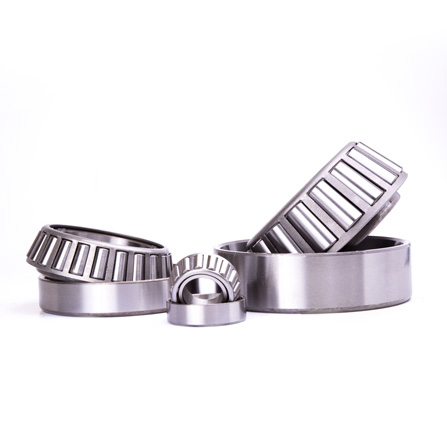

ETC EVO Tapered roller bearings

Tapered roller bearings (TRBs) utilize rolling elements that are shaped like a truncated cone, and are constructed so that all tapered surfaces converge at a common apex point on the bearing centerline to yield true rolling motion. Tapered roller bearings are generally used in lower speed, high load applications and are capable of absorbing radial and/or axial loads. The internal angles may be designed to tailor the bearing to the loading demands of a specific application.

Size Designation-Single Row Tapered Roller Bearings:

• 320xx Series： 32005 – 32016
• 322xx Series： 32206 – 32218
• 323xx Series： 32306 – 32313
• 302xx Series： 30203 – 30220
• 303xx Series： 30303 – 30318
• 313xx Series： 31305 – 31310
• 330xx Series： 33010 – 33016

Designs, Types and features:

• C:medium contact angle 17°- 24°
• LM: light load symbol
• HM: heavy load symbol

Features:

• High quality through hardened bearing steel
• Optimized, engineered internal geometry
• Highly consistent, reliable, and flexible manufacturing
• Globally interchangeable inch and metric designs
• Available integrated seal

Advantages:

• Improved bearing reliability and life
• Integrated seal can improve contamination exclusion to, or replace, external seals in certain applications.

Benefits:

• Extended bearing life equals longer equipment service life
• Longer intervals between scheduled machine maintenance results in lower ownership cost

Ring Material: SAE 52100 ~ ISO 100Cr6 ~ GB/T GCr15
Seal Material: Nitrile
Precision Classes: P0, P6, P5, P4, P2 (ABEC 2)
Inch: Class 4, Class 2
J line Metric: Class K, Class N
Heat Stabilization: S0, S1, S2, S3
